Ubuntu Consortium Safe Secure Easy Key Management

A New Era of Traceability with Creone Electronic Key Management and Asset Management, with our Modular Design Key & Locker Control Systems.

Scroll Down

Audit Trail

Full Audit Trail and History of all users and keys Taken. What Time, Where, When.

Secure Logins

Login Securely to the Key Management Software with 2FA and Key Cabinet with only Authorised User Access.

User Access

Each User Access the System Securely with Authorised – Pin, Card, Fingerprint, Facial or in Combination.

About

US

Ubuntu Consortium, is the sole Distributor for Creone Key Management Systems in South Africa, Experience the future of security with Creone’s innovative Electronic Key Management solutions designed to simplify your operations and enhance safety. Our Intelligent Key Cabinets, equipped with advanced features and scalable capabilities, offer unparalleled control over your key inventory while ensuring complete traceability through the intuitive KeyWin6 cloud service. Say goodbye to the chaos of traditional key management as you enjoy automated alerts, seamless access control, and effortless integration with your existing systems. Offering full Turn Key solutions on Intelligent Key Management and Control, with Asset Management and Fleet Management Solutions.

Electronic Key Management

The Creone KeyControl series is the Smartest KeyBox System with Electronic Key Identification and Key Management for tracking and control of each individual key. The Key Cabinets are administered via the KeyWin Software which logs and saves all events.

The Keycontrol series is fully flexible and can easily be expanded to store anywhere from 14 to thousands of keys in just one key management system. In line with your growing needs, you can easily add more strips and key positions to your key cabinet or add more key cabinets/extension cabinets to the same system. Keys can be returned to Locked Positions and Cabinets, or Random Return to any position and cabinets in different areas.

Various models of each key cabinets are available, with a Maximum of 42, 84, 210, 224 and 924 keys respectively in each cabinet. All Key Cabinets are Constructed in Steel with a solid steel door for maximum Security and Intelli-Pins are manufactured for Longer Lasting Quality.

View All Products

9400 SC

1 - 42 Key Positions

9500 SC

1 - 84 Key Positions

9550 SC

1 - 210 Key Positions

9600 SC

1 - 224 Key Positions
Floor Standing

9700 SC

1 - 924 Key Positions
Floor Standing

KeyRack

1 - 924 Key Positions

Key Management in Action

ValueBox

Secure Storage

KeyBox Basic

Basic Series

Request for Information or Quote

Contact Us

Feature Overview

Electronic Key Management

Personal Code

The Key Cabinets is Equipped with a Keypad for Programming and Entering Personal Codes.

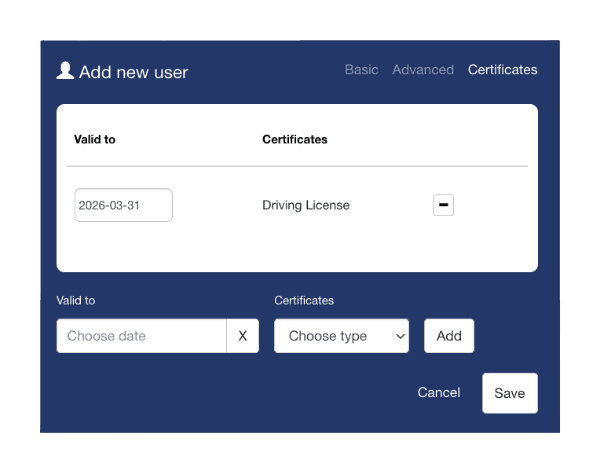

Key Names and Bookings

Give each key a name of your choice, or a Key ID, to create order in your Key Management. Reserve Keys for Specific Users with email Booking Notifications.

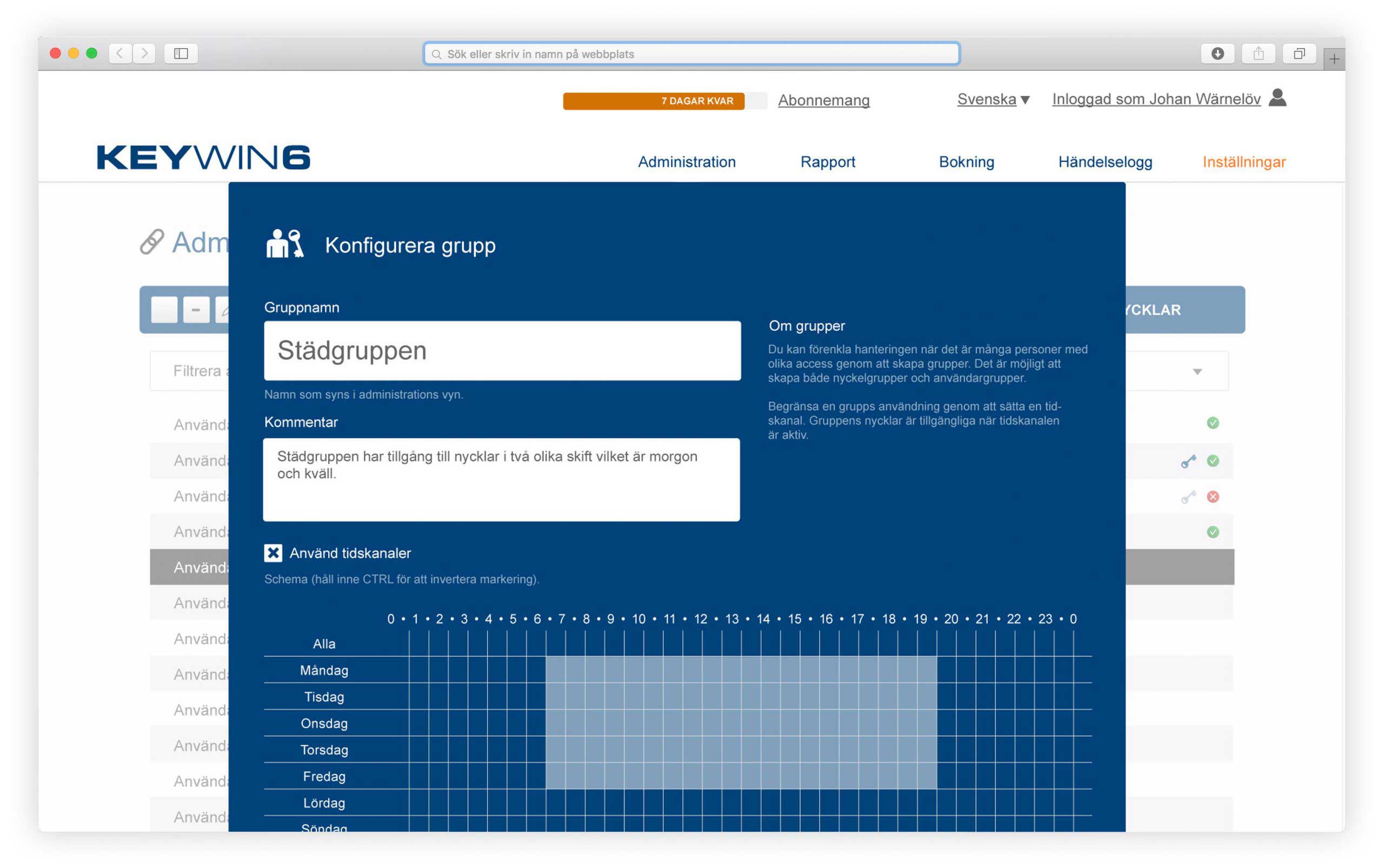

Groups and Schedules

Create User Groups or Limit Groups Access by using Schedules for Access, Create Alerts for Keys not Returned in Certain Time Frame.

Visual Cabinet View

Gives you the option to view the Key Cabinet’s status and edit keys in the Cabinet.

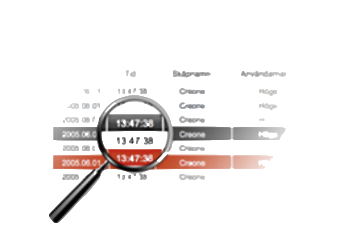

Event Logs

All Events are Registered in the Log, both from Key Cabinet and Keywin6. Filter Results Easily. Email Alerts are sent to the Notification Groups Specified.

Alarms

The Key Cabinet is equipped with an Alarm Function that signals when the Door has been left open or keys returned to incorrect positions, can also be connected to armed response alarm signals.

Data Backup

With KeyWin6 IoT, Backups are automatically created and stored Daily, Weekly, Monthly, Yearly. Keeping your Data Secure.

Battery Backup

With Battery Backup, you never need to worry about your Cabinet’s availability.

Display Overview

Display for a good overview provides an excellent menu navigation. Active Alarms, Key Usage, History and Configuration.

Alarm Indication

When you receive an Alarm by Email, the alarm is clearly marked by a red event in the event log on KeyWin6 and can Easily see who or what has triggered the Alarm.

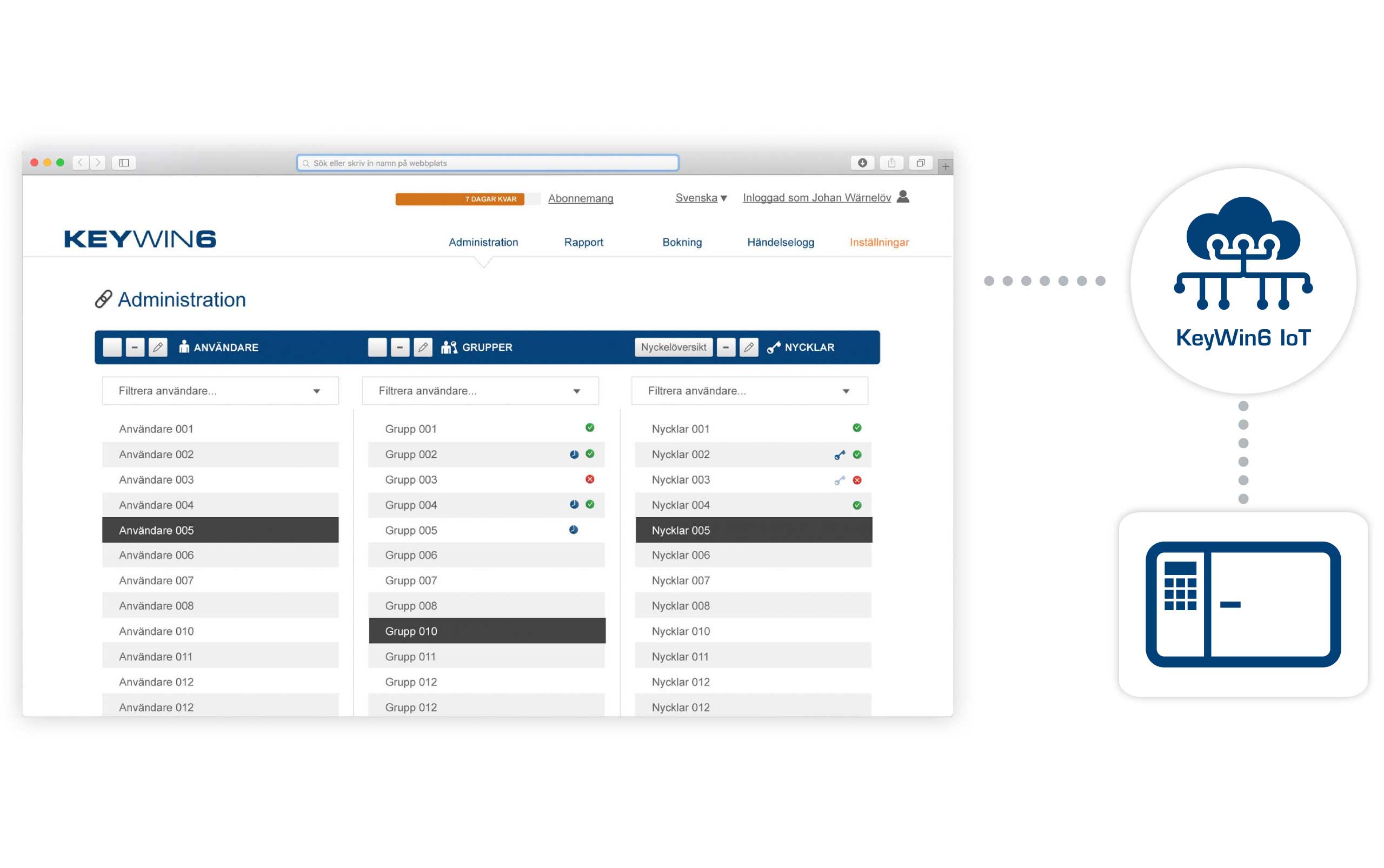

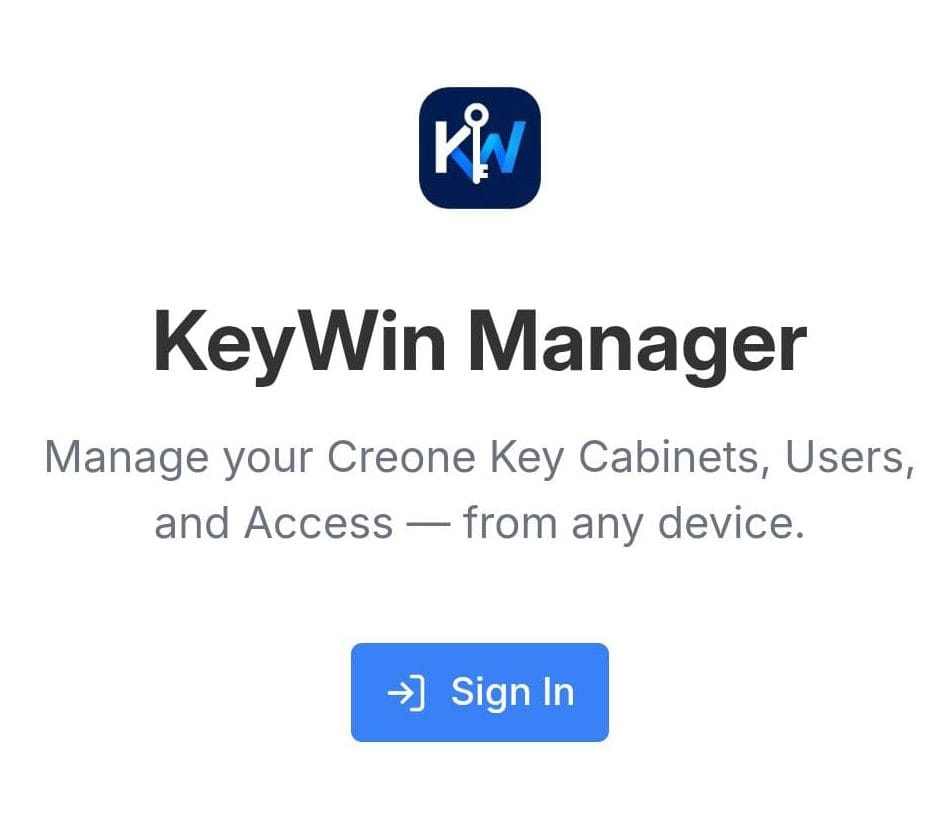

Keywin6 IoT - As Easy as it gets

Our KeyWin6 cloud services is built around IoT technology via Microsoft Azure. Despite the advanced, modern and secure technology – the simplicity is the beauty of KeyWin6 IoT. No local software installation is needed for full control of your Key Management, our IoT products connects only through outbound communication to the KeyWin cloud service. Through advanced technology we simplify and cut cost for our clients – just as it should be.

No software installation is needed
Encrypted with SSL Certificate, DigiCert Secure Site Pro SAN
OWASP top 10 tested

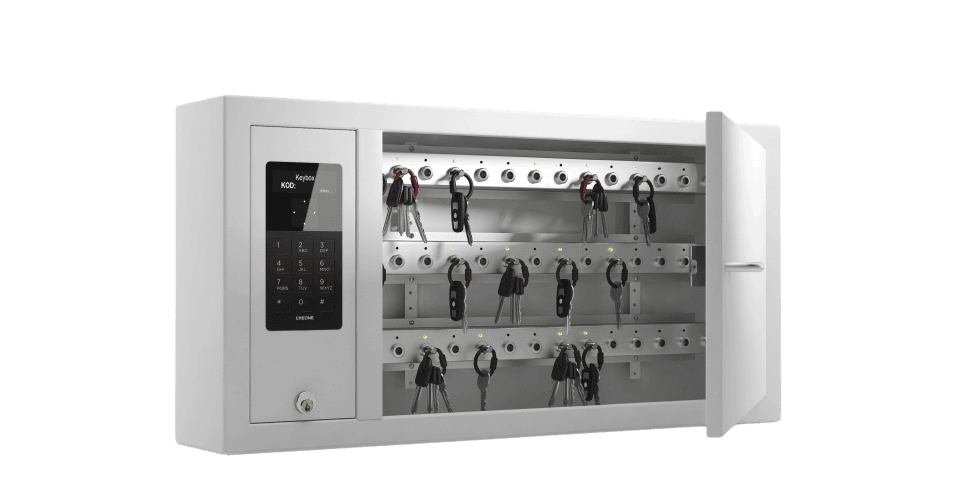

9400SC - 1 to 42 Keys

Intelligent key cabinet in a compact format, with key identification to monitor and control each individual key. Holds a maximum of 42 key positions but can be equipped with fewer positions and expanded when business needs change. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 42
– Maximum number of key strips: 3
– Ext. dimensions (HxWxD): 370 x 746 x 140 mm
– Weight, fully equipped: 25 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

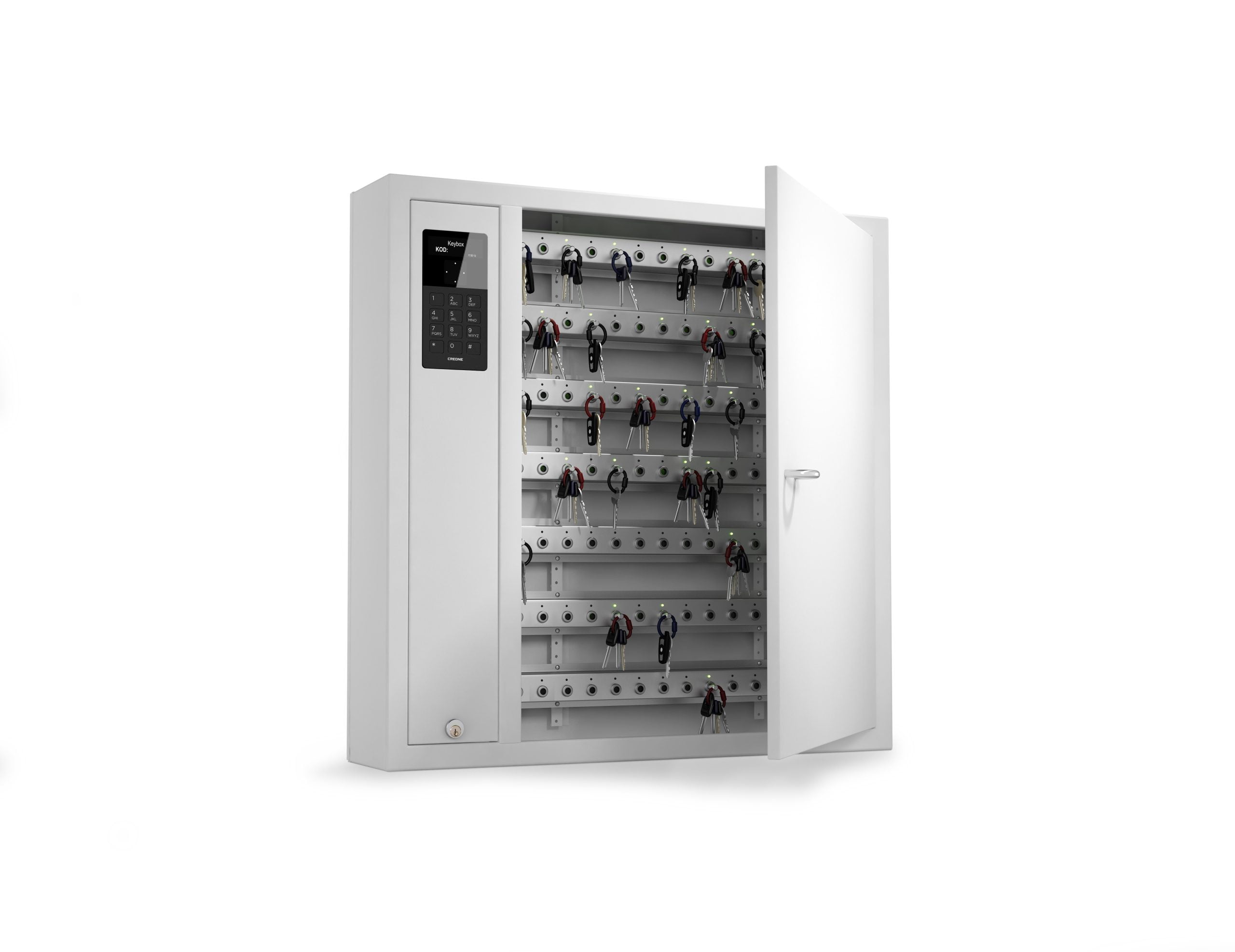

9500SC - 1 to 84 Keys (Expansion Cabinet Capability)

Intelligent key cabinet with key identification to monitor and control each individual key. Holds a maximum of 84 key positions but can be equipped with fewer positions and expanded when business needs change, also add Extension Cabinets as your needs grow. Possibility to expand capacity further by connecting additional expansion cabinets. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 84
– Maximum number of key strips: 6
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Weight, fully equipped: 30 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

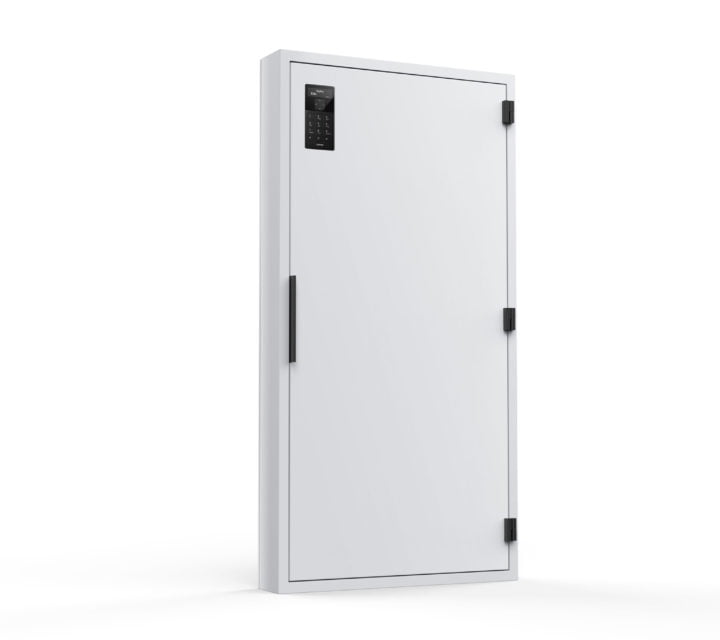

9550SC - 1 to 210 Keys (Expansion Cabinet Capability)

Intelligent key cabinet with key identification to monitor and control each individual key. Holds a maximum of 210 key positions but can be equipped with fewer positions and expanded when business needs change. Possibility to expand capacity further by connecting additional expansion cabinets. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys is achieved using a functional and user-friendly interface.

Specifications
– Max. number of positions: 210
– Max. number of key strips: 15
– External dimensions (hxwxd): 1460x746x140 mm
– Weight, fully equipped: 70 kg
– Material: 1.5 mm galvanised steel
– Electricity: 230V
– Battery backup: 12V, 7.2Ah
– Network connectivity: Yes
– Software: KeyWin6
– Installation: Wall

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

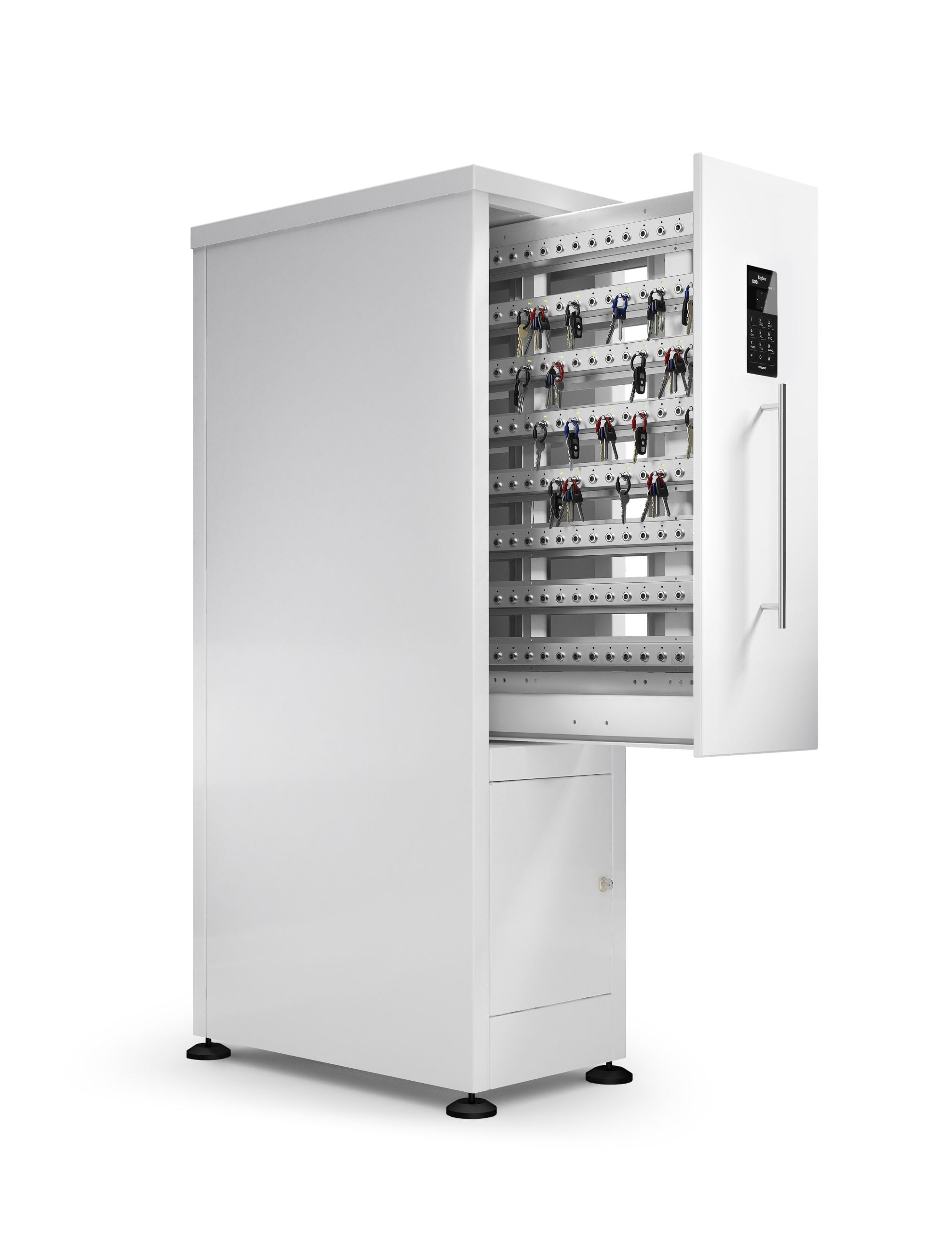

9600SC - 1 to 224 Keys

Intelligent floor-standing key cabinet with key identification to monitor and control each individual key. Holds a maximum of 224 key positions but can be equipped with fewer positions and expanded when business needs change.

Key strips are mounted with standard spacing or customised for handling bulky or long items. Individual login via PIN or select card reader to use your existing RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 224
– Maximum number of key strips: 16
– Ext. dimensions (HxWxD): 1470 x 380 x 698 mm
– Weight, fully equipped: 130 kg
– Material: 2.25 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

9700SC - 1 to 924 Keys

Intelligent floor-standing key cabinet with key identification to monitor and control each individual key. Holds a maximum of 924 key positions but can be equipped with fewer positions and expanded when business needs change.

Key strips are mounted with standard spacing or customised for handling bulky or long items. The three login panels provide more opportunities to restrict access to keys by categorising the key stock or user permission levels. Individual login via PIN or select card reader to use your existing RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 924
– Maximum number of key strips: 66
– Ext. dimensions (HxWxD): 1720 x 980 x 690 mm
– Weight, fully equipped: 280 kg
– Material: 2.25 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

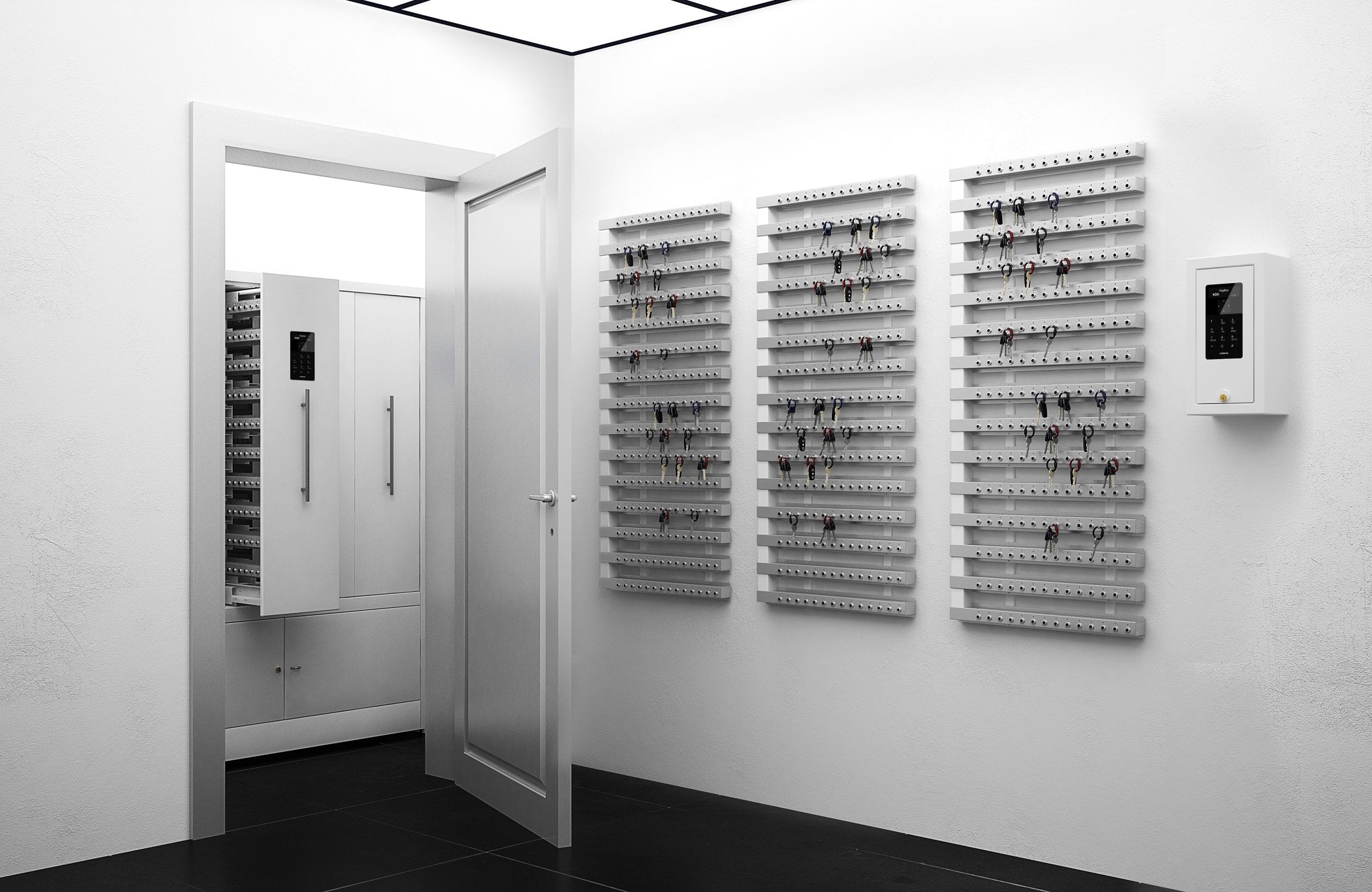

KeyRack - 1 to 924 Keys

Pair your keys with the IntelliPin key peg and place them in the KeyRack system’s lockable/non-lockable key strips, directly on the wall or in a cabinet. It couldn’t be easier to secure an overview and complete control of your key stock. With KeyRack you can expand your intelligent key storage up to a maximum of 66 strips with a total of 924 unique key positions per control box connected to KeyWin. Get maximum overview by mounting directly on the wall or maximum security by mounting in one or more security cabinets – the choice is yours.

– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

Approach

Stop worrying about your key management and focus on your business

All KEY and Valuable Cabinets have Keypads with optional RFID,Fingerprint or Facial Readers, if the Business wants to use their own current readers this can be easily connected to the Solution, and you can easily decide who has access to a specific key or compartment. What solution are you looking for?

Integration

There are two options for integrating KeyWin6 into a third party system – an intergration engine or API, Included in the Solution.

Current Integrations – ARX, Gallagher, Wiz Kenco, EZbooking

Logic control and improved administration

With our KeyWin6 reporting system, you always have complete control of your keys and user movements to understand how you can streamline your management. For example, you can see the most frequently used keys and users who have logged into the cabinet the most times.
