The KeyControl series is the Smartest KeyBox System with Electronic Key Identification and Key Management for tracking and control of each individual key. The Key Cabinets are administered via the KeyWin Software which logs and saves all events.
Select a Product below to view information on the various KeyBox Types, all KeyBoxes can be configured with Locking or Non Locking Strips or Combination thereof.

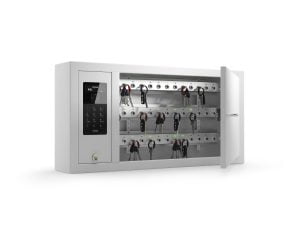

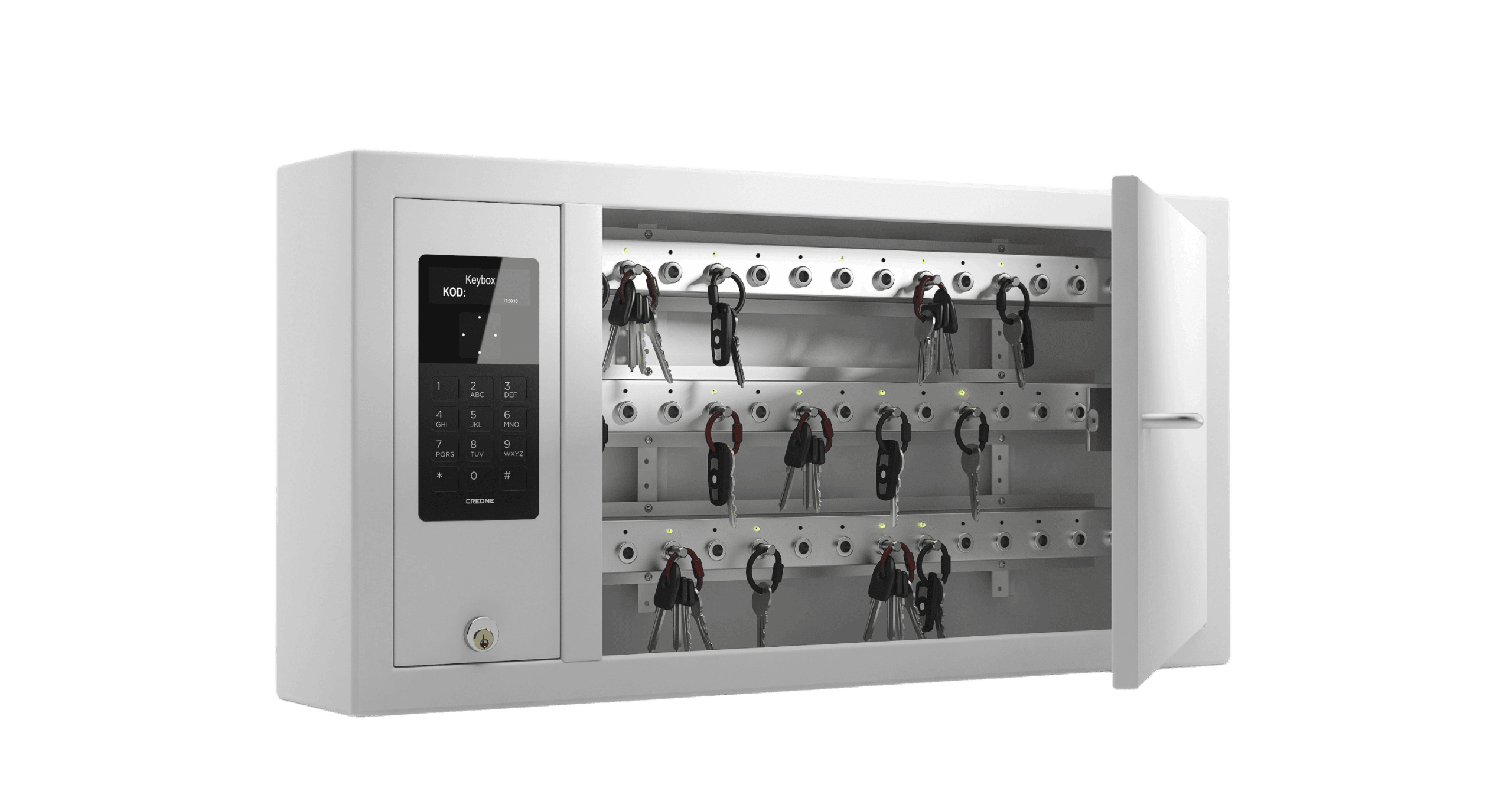

9400SC - 1 to 42 Positions
Intelligent key cabinet in a compact format, with key identification to monitor and control each individual key. Holds a maximum of 42 key positions but can be equipped with fewer positions and expanded when business needs change. Individual login via PIN or select card reader when using RFID tags and cards for greater security.
Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.
Specifications
– Max number of positions: 42
– Maximum number of key strips: 3
– Ext. dimensions (HxWxD): 370 x 746 x 140 mm
– Weight, fully equipped: 25 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls
Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

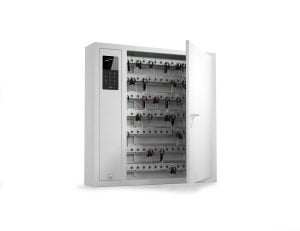

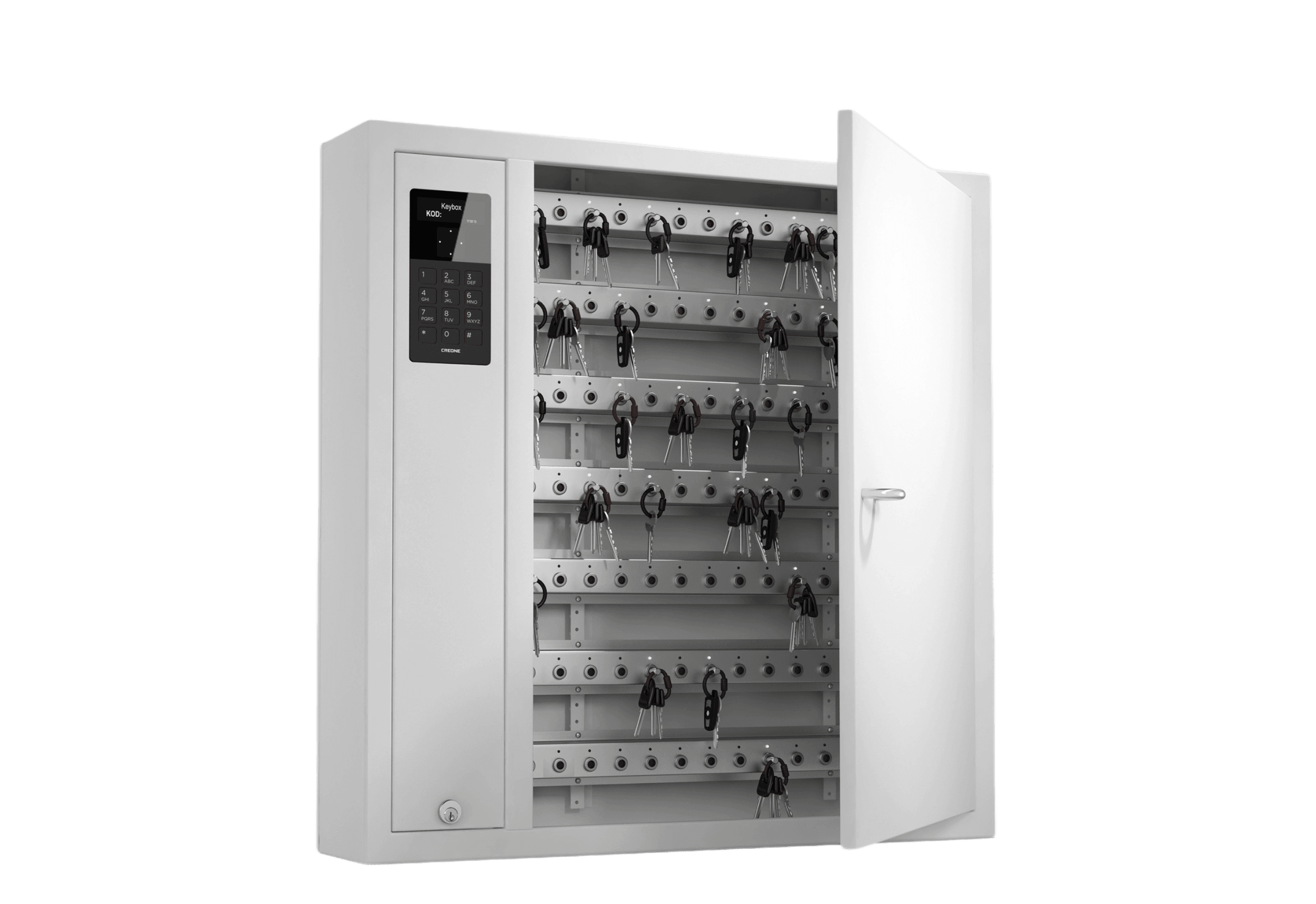

9500SC - 1 to 84 Positions
Intelligent key cabinet with key identification to monitor and control each individual key. Holds a maximum of 84 key positions but can be equipped with fewer positions and expanded when business needs change. Possibility to expand capacity further by connecting additional expansion cabinets. Individual login via PIN or select card reader when using RFID tags and cards for greater security.
Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.
Specifications
– Max number of positions: 84
– Maximum number of key strips: 6
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Weight, fully equipped: 30 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls
Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

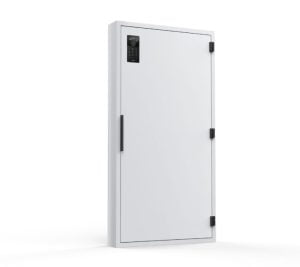

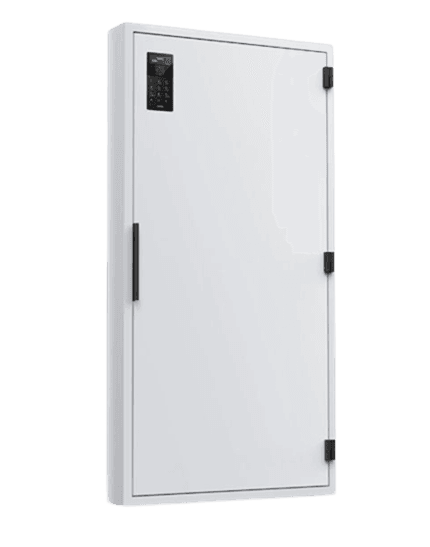

9550SC - 1 to 210 Positions
Intelligent key cabinet with key identification to monitor and control each individual key. Holds a maximum of 210 key positions but can be equipped with fewer positions and expanded when business needs change. Possibility to expand capacity further by connecting additional expansion cabinets. Individual login via PIN or select card reader when using RFID tags and cards for greater security.
Key management is administered with the KeyWin cloud service, which means complete traceability of keys is achieved using a functional and user-friendly interface.
Specifications
– Max. number of positions: 210
– Max. number of key strips: 15
– External dimensions (hxwxd): 1460x746x140 mm
– Weight, fully equipped: 70 kg
– Material: 1.5 mm galvanised steel
– Electricity: 230V
– Battery backup: 12V, 7.2Ah
– Network connectivity: Yes
– Software: KeyWin6
– Installation: Wall
Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

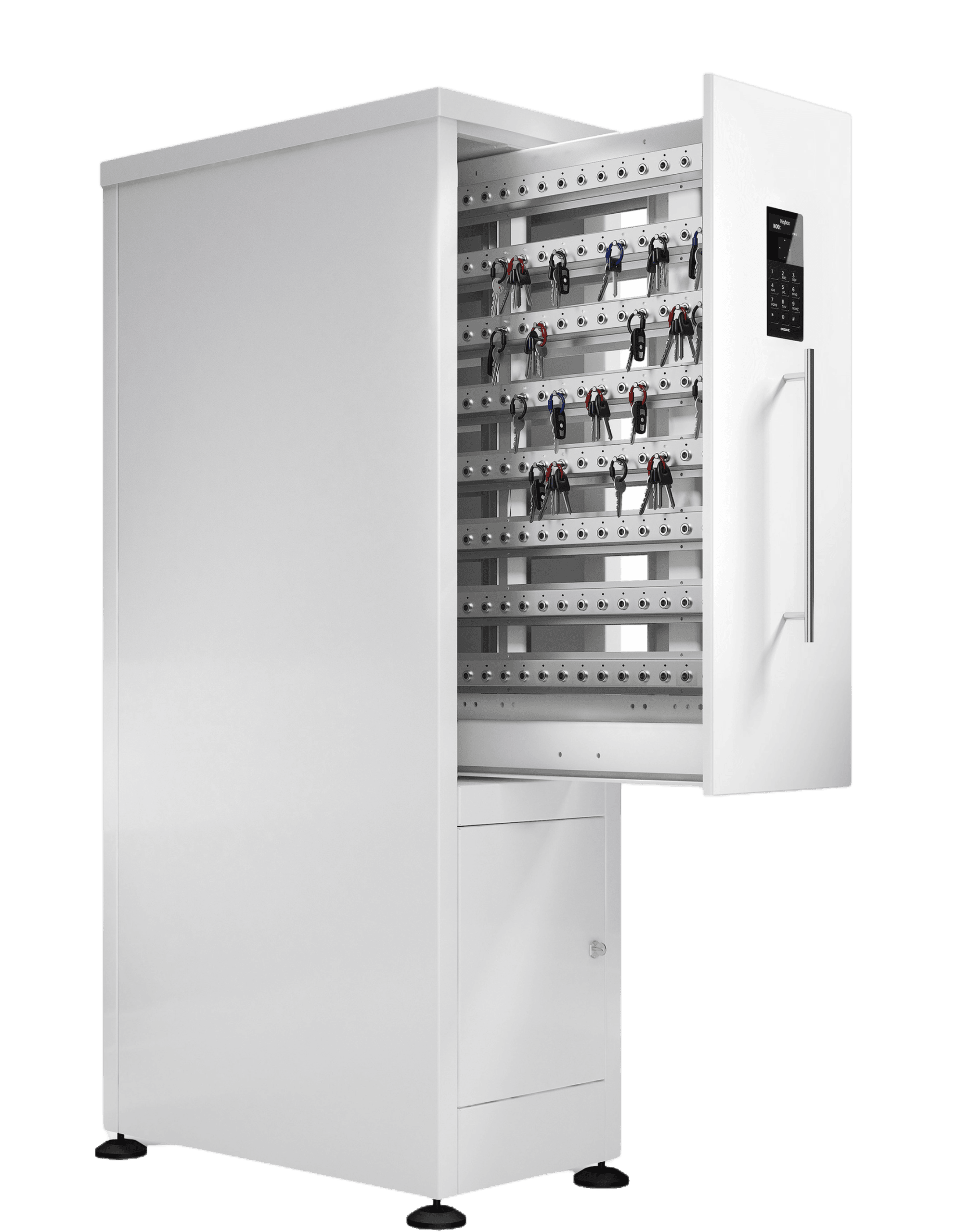

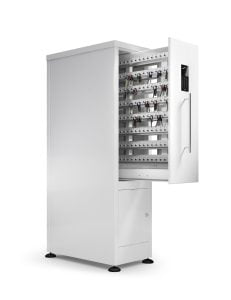

9600SC Floor Standing - 1 to 224 Positions
Intelligent floor-standing key cabinet with key identification to monitor and control each individual key. Holds a maximum of 224 key positions but can be equipped with fewer positions and expanded when business needs change.
Key strips are mounted with standard spacing or customised for handling bulky or long items. Individual login via PIN or select card reader to use your existing RFID tags and cards for greater security.
Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.
Specifications
– Max number of positions: 224
– Maximum number of key strips: 16
– Ext. dimensions (HxWxD): 1470 x 380 x 698 mm
– Weight, fully equipped: 130 kg
– Material: 2.25 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing
Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

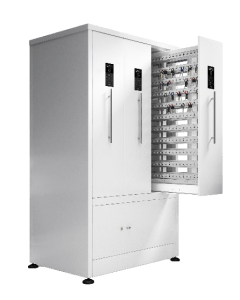

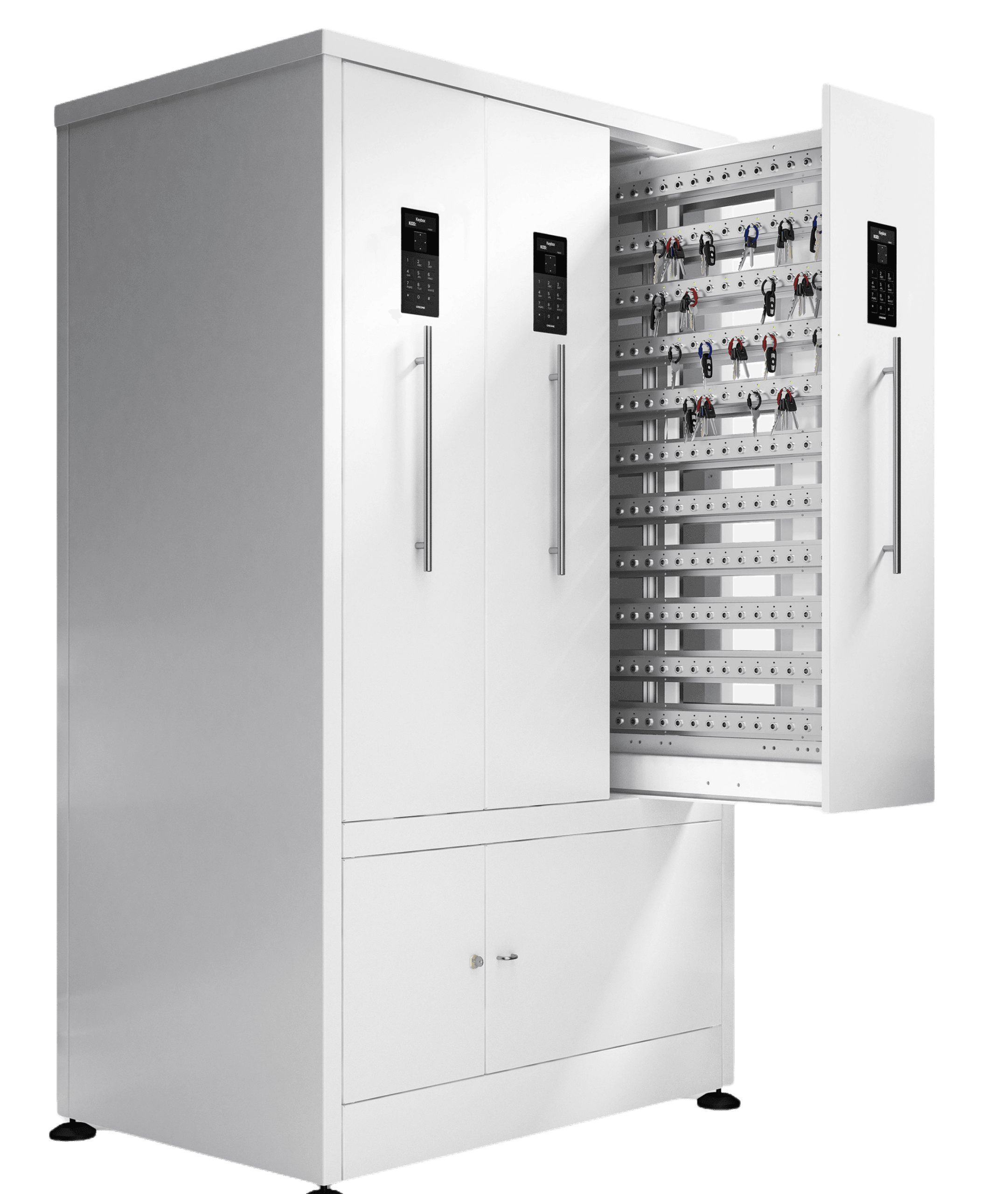

9700SC Floor Standing - 1 to 924 Positions
Intelligent floor-standing key cabinet with key identification to monitor and control each individual key. Holds a maximum of 924 key positions but can be equipped with fewer positions and expanded when business needs change.
Key strips are mounted with standard spacing or customised for handling bulky or long items. The three login panels provide more opportunities to restrict access to keys by categorising the key stock or user permission levels. Individual login via PIN or select card reader to use your existing RFID tags and cards for greater security.
Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.
Specifications
– Max number of positions: 924
– Maximum number of key strips: 66
– Ext. dimensions (HxWxD): 1720 x 980 x 690 mm
– Weight, fully equipped: 280 kg
– Material: 2.25 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing
Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock
Personal Code
The Cabinet is Equipped with a Durable Keypad for Entering Personal Access Code

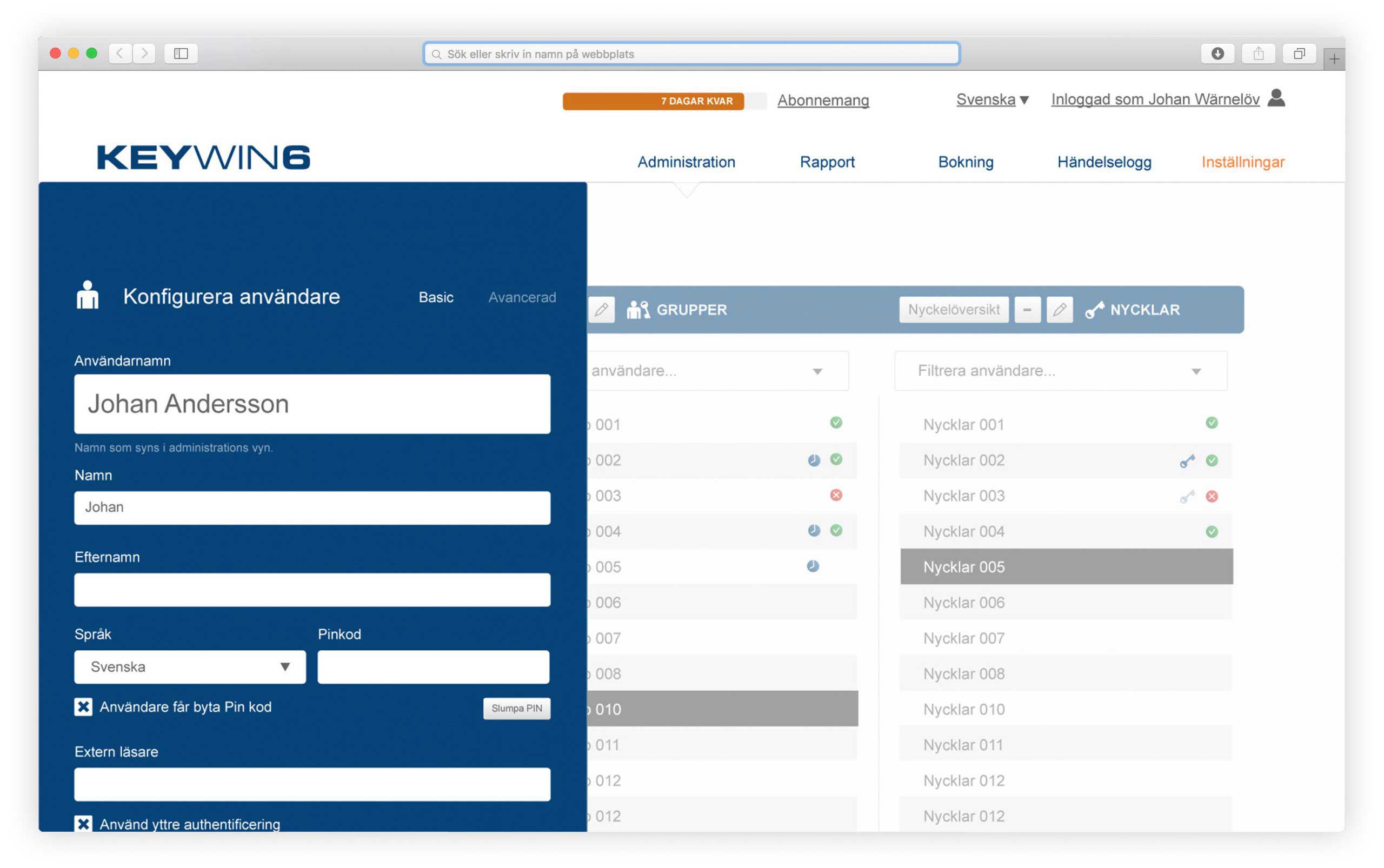

Visual cabinet view
Gives you the option to view the cabinet’s status and edit the keys in the cabinet
Easy to Use
The administrator determines the members of staff who have access to a specific key by entering which user can log into the cabinet with their personal code or card
Event Log
All Events are registered for both Cabinet and KeyWin6 and have the ability to filter what you see
Battery Backup
With Battery Backup you never have to worry about Cabinet Availability
User Groups
Add User Groups to Keys or Users for a better way to Manage Team Access to Various Keys and Times of Access
